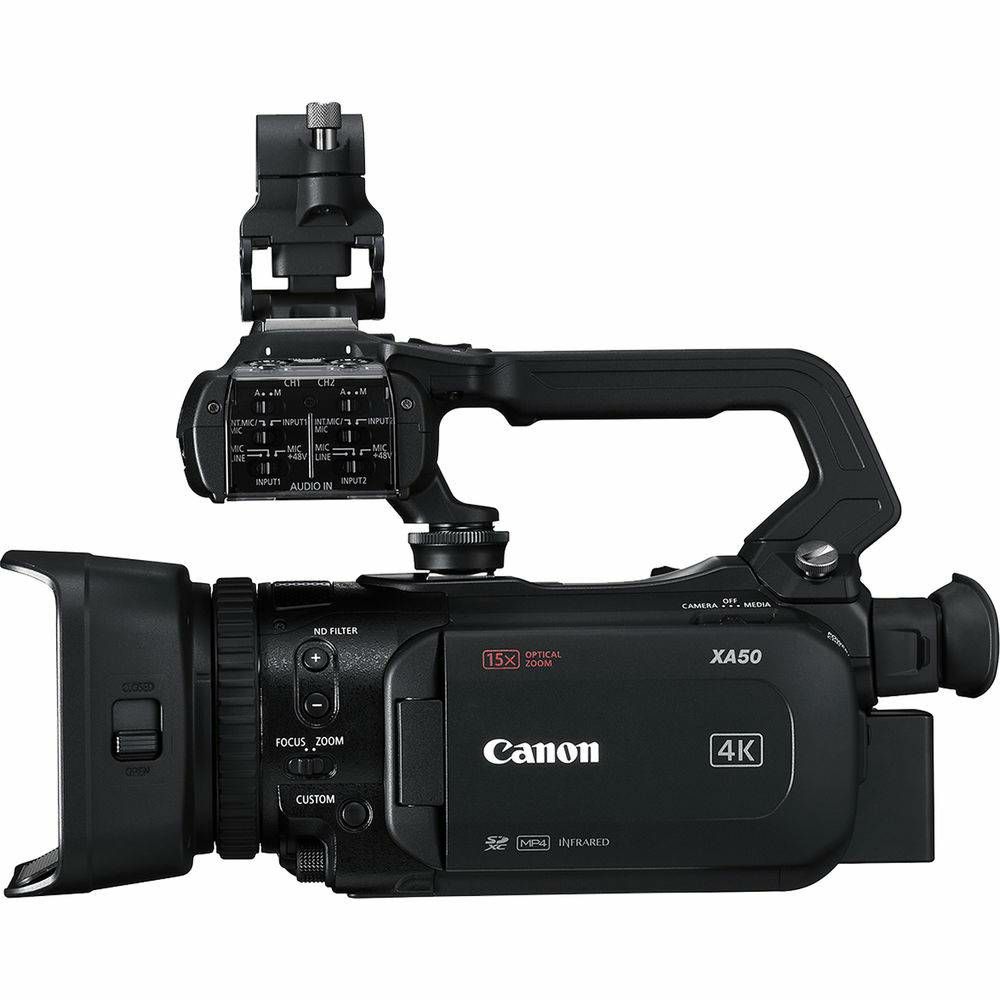

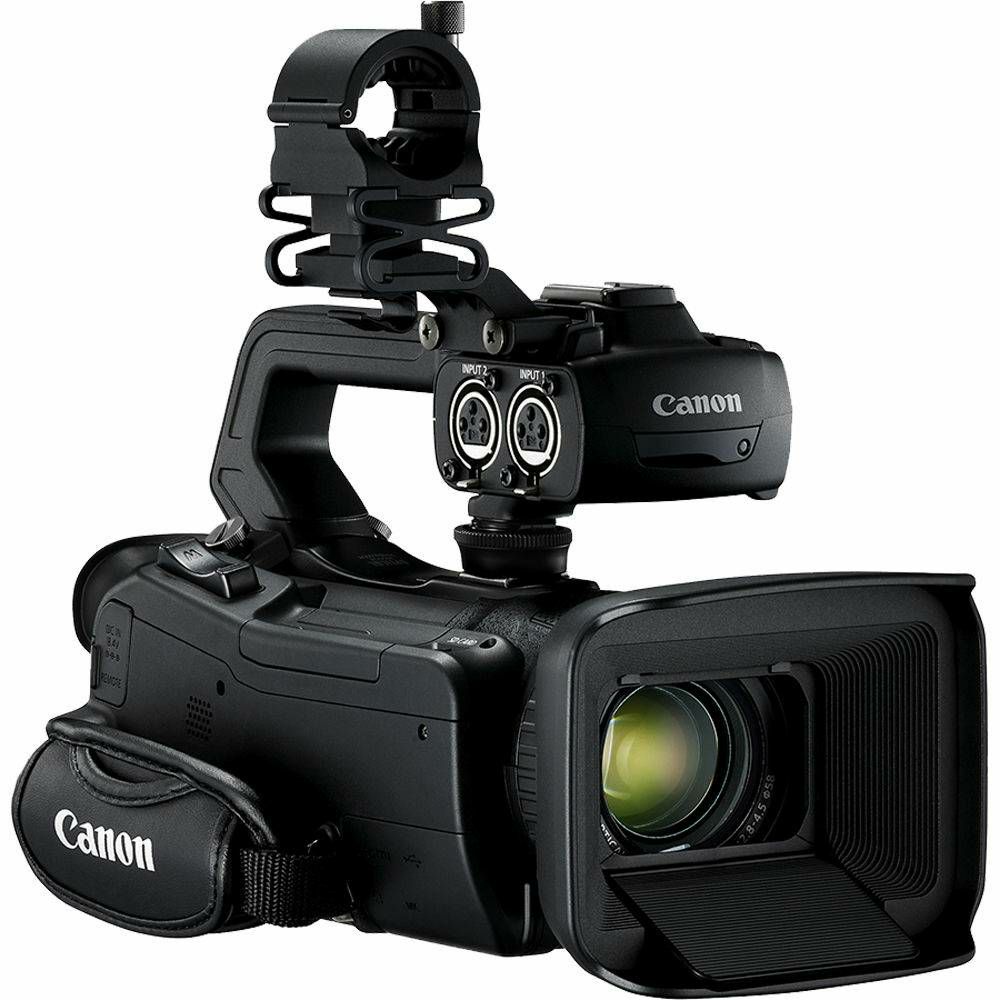

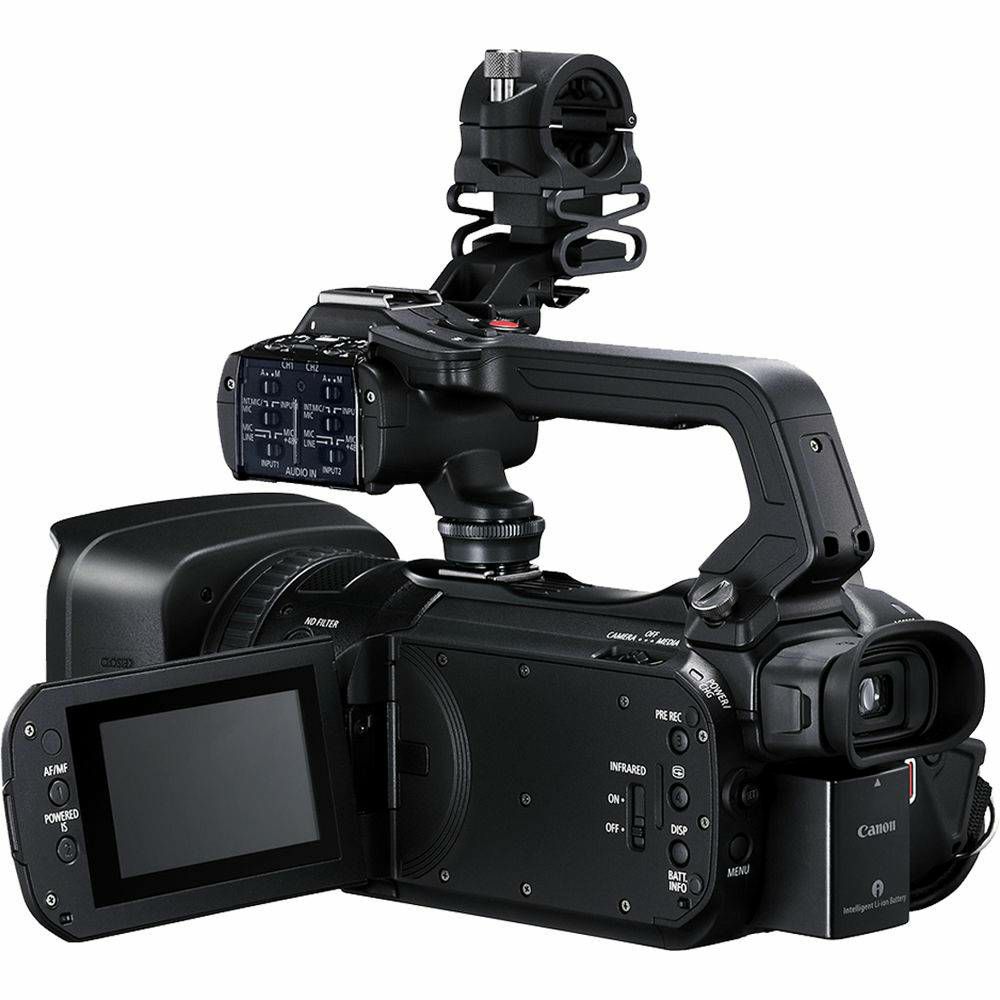

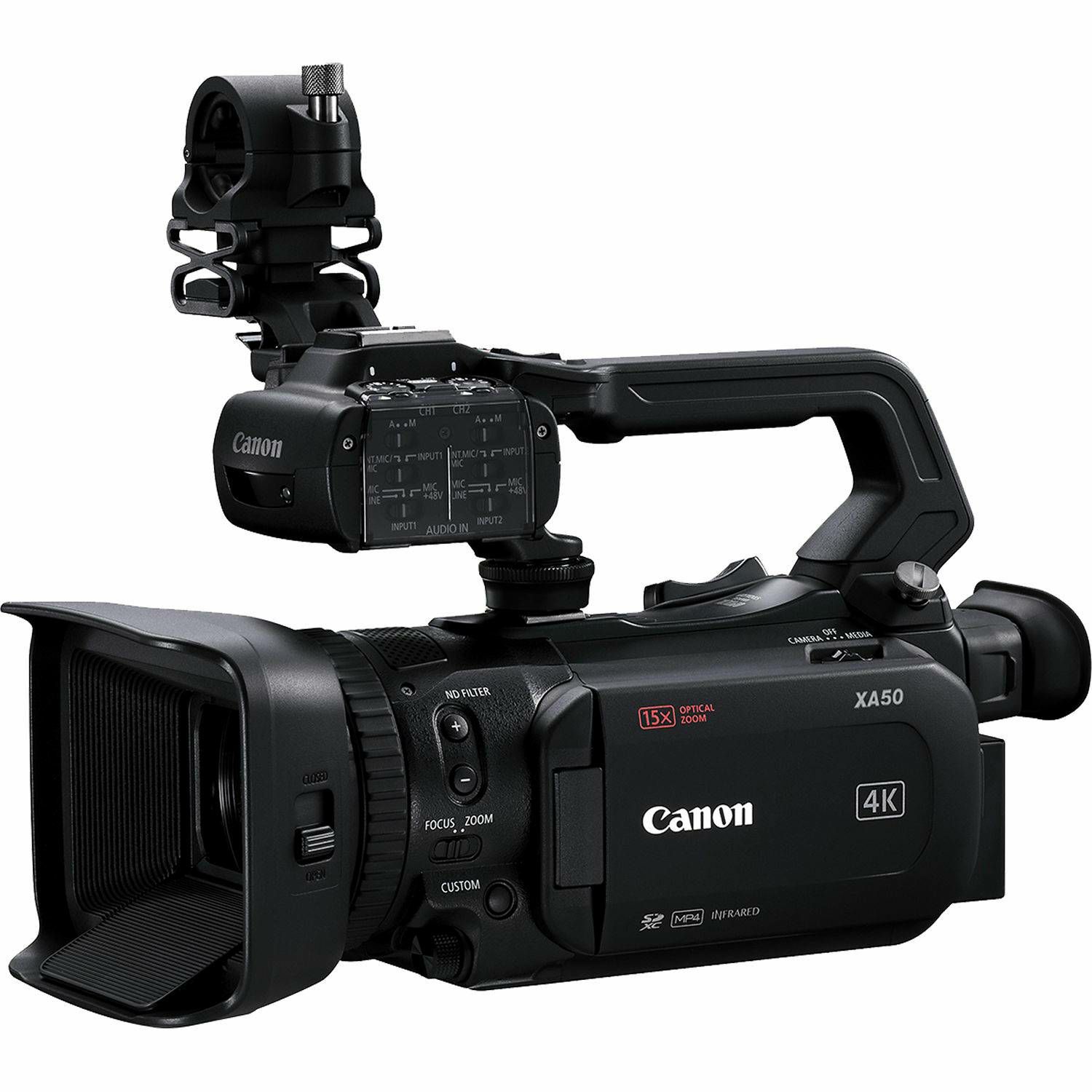

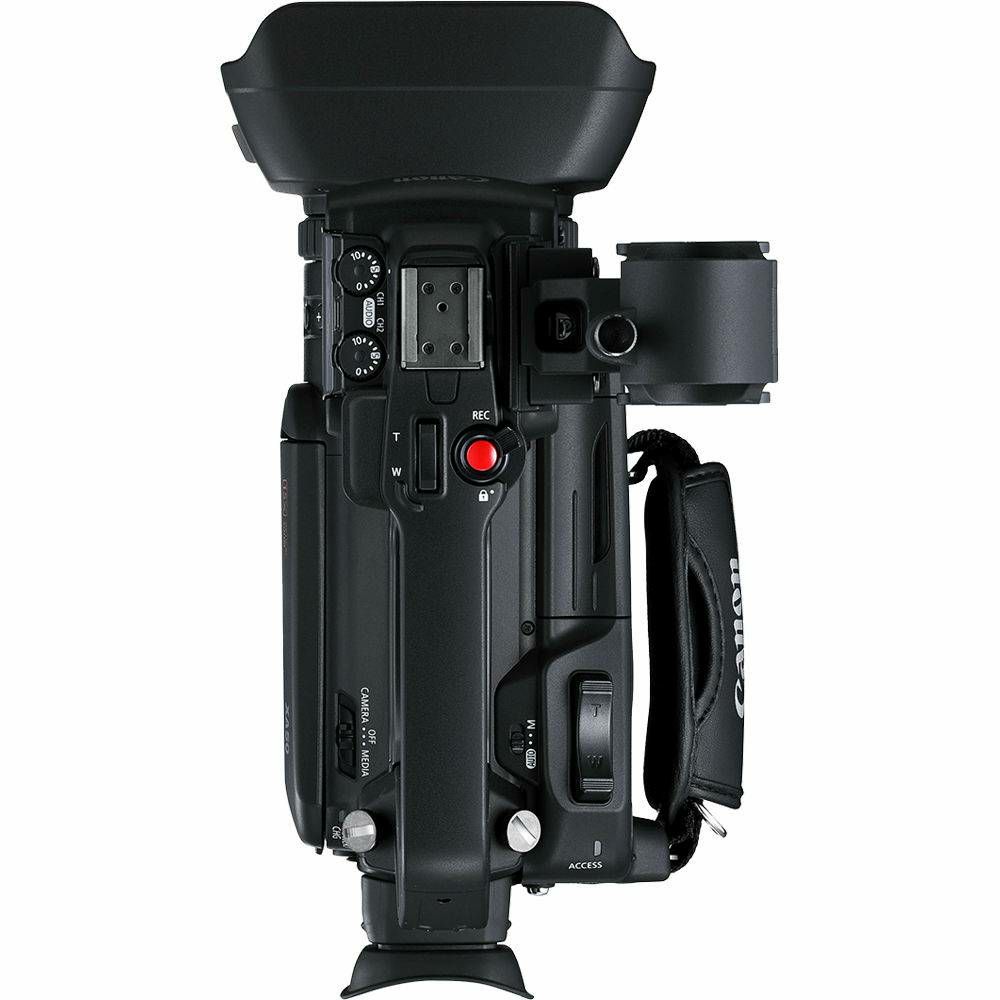

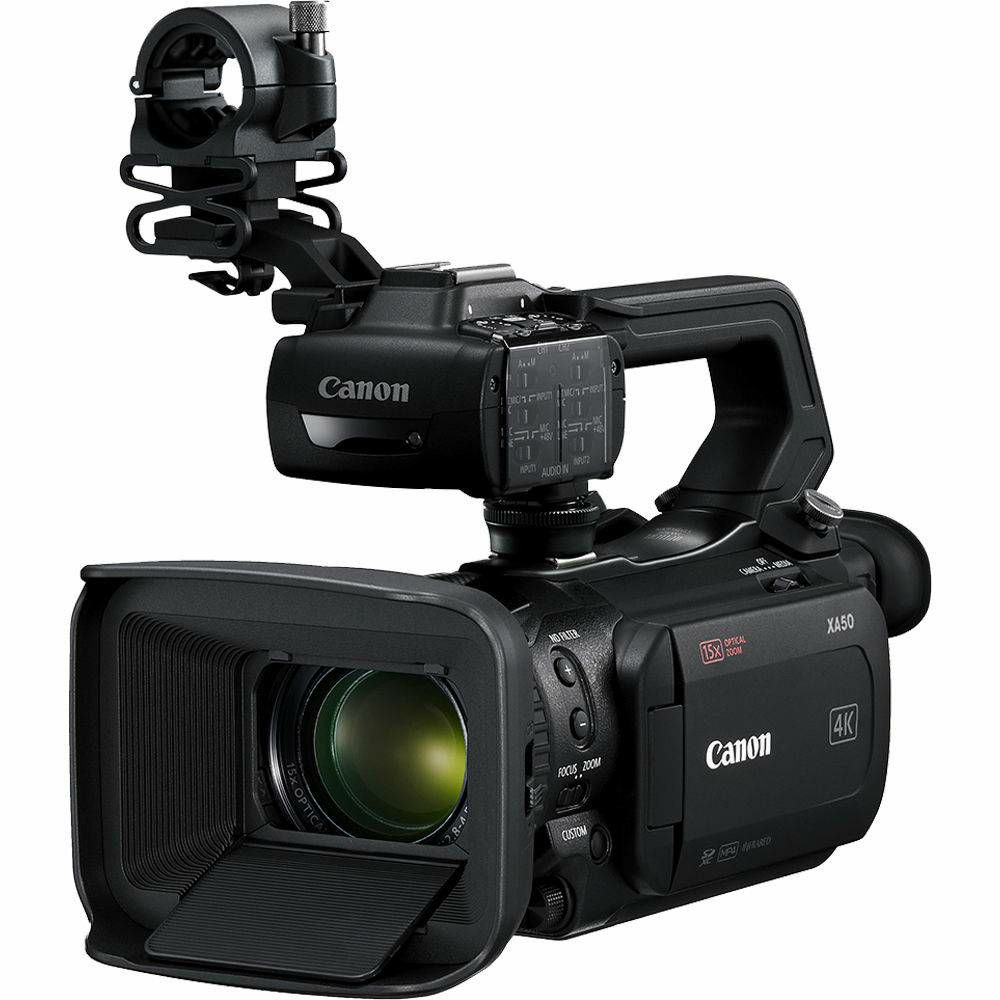

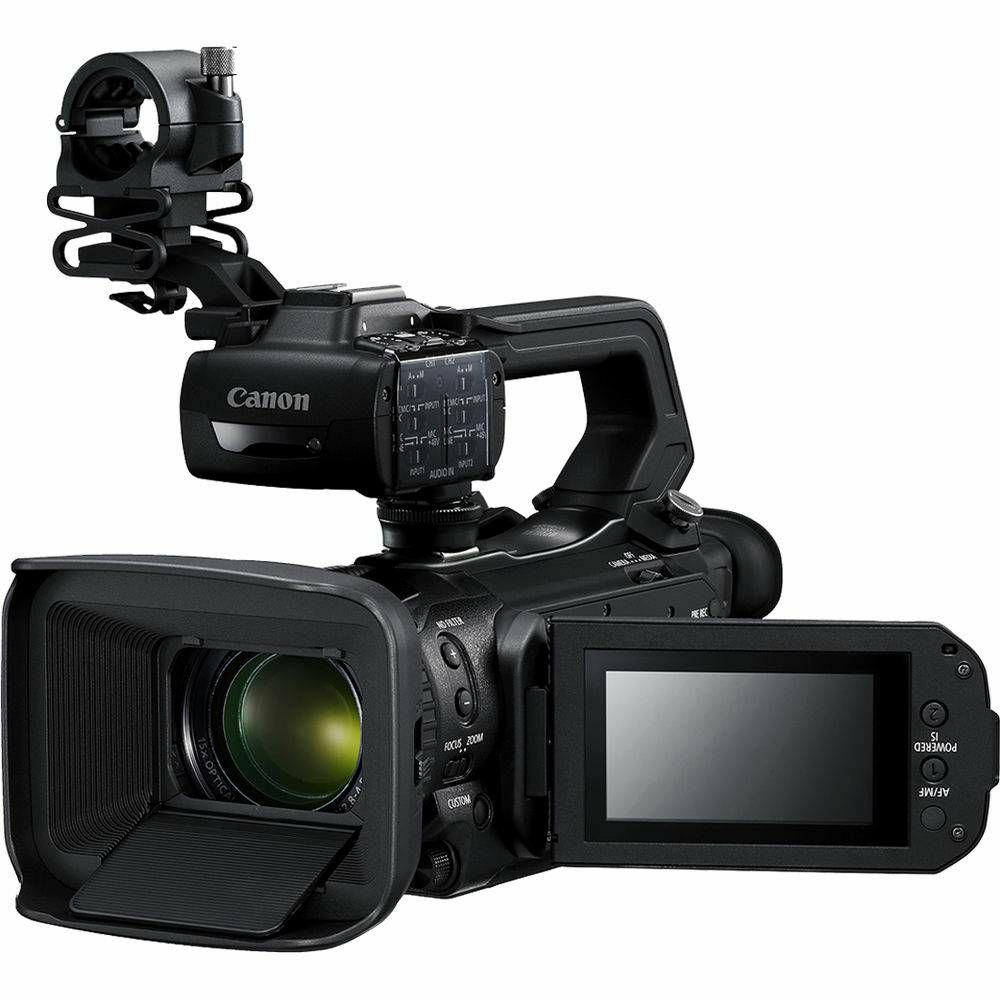

Canon 3669C003AA - Caméscope UHD 4K professionnel XA50 DIGIC DV 6

Name: Caméscope UHD 4K professionnel XA50 DIGIC DV 6
Brand: Canon
SKU: 3669C003AA
Price: 27728.45 MAD
Availability: OutOfStock

Chargement...

Avis

Caméscope UHD 4K professionnel XA50 DIGIC DV 6 3669C003AA

Obsoléte Fin de vie

Caméscope UHD 4K XA50 comprend un zoom optique HD 15x intégré et un iris circulaire à neuf pales pour des reflets plus naturels, Une large prise en charge DR gamma pour un enregistrement en basse lumière, Les fonctionnalités de style professionnel de l'appareil photo incluent l'autofocus Dual Pixel et Contrast, L'enregistrement rapide et au ralenti, Le contrôle manuel complet, La stabilisation d'image optique et électronique, Un écran LCD tactile de 3", Mode infrarouge Processeur DIGIC DV 6

Disponibilité :Obsolète (Fin de vie)

Dernière mise à jour : 10/04/2020

Neuf en boîte

Ce produit n'est plus proposé à la vente

Demander un devis par WhatsApp Demander un Devis

Description
Caractéristiques Techniques
Avis des clients

Caractéristiques
Code produit	3669C003AA
Capteur d'image
Capteur	CMOS de type 1.0
Filtre	Filtre couleur primaire RVB
Pixels totaux	Environ. 13,4 MP
Pixels effectifs par capteur	Environ. 8,29 MP (3840 x 2160)
Plage d'éclairage du sujet	Environ. 0,1 lx à 100 000 lx
Éclairage minimum (PAL)	Mode P: env. 1,4 lx (vitesse d'obturation 1/25 s, 50,00 P; avec obturation lente automatique activée)
Éclairage minimum (PAL)	Mode faible luminosité: env. 0,1 lx (vitesse d'obturation 1/2 sec.)
Lentille
Rapport de zoom	15x optique
Distance focale (équivalent 35 mm)	Environ. 25,5 à 382,5 mm Standard IS / IS désactivé
Distance minimale de mise au point	10 mm à l'extrémité large, 60 cm sur toute la plage de zoom
Ouverture	f / 2,8 - f / 11 (Priorité AV et modes manuels)
Lames d'ouverture	9 lames
Diamètre du filtre	58mm
Image stabilization system	Optical system (lens shift) + electronic stabilization
Image stabilization system	Dynamic, Standard, Powered, Off
ND filter	3 densities: turret switched, motor-driven.
ND filter	ND 1/4, ND 1/16, and ND 1/64.
Zoom control	Zoom rockers on body and handle;
	Selectable manual zoom/focus ring on lens;
	Wireless controller;
	Selectable High Speed mode available.
Zoom Speed	Variable (body rocker only) or Constant speed (body rocker, handle rocker and wireless controller; Fast/Normal/Slow, 16 speed level settings in each)
Focus control	MANUAL: Lens ring and touchscreen point selection (Focus Guide and Peaking assist functions), Focus Preset.
	AUTOFOCUS: Touchscreen AF point selection, Face Detection and Tracking, Face Only AF.
	(Continuous AF, AF-Boosted MF, AF Speed, AF Response, AF Frame size)
Focus System	Dual Pixel CMOS AF, Contrast AF
Iris control	Touchscreen, Auto
Digital zoom/Teleconverter	300x Digital Zoom, 2x Digital Teleconverter
Image Processor
Type	DIGIC DV 6
Dynamic Range	800% in Wide DR mode
Colour Sampling	YCC 4:2:0
Bit depth	8-bit
Recording
Video storage media	SD/SDHC/SDXC card (2 card slots)
Type	Class U3 cards recommended
Recording time (64GB Card, approx.)	MP4: 150Mbps: 55 mins / 35Mbps: 220 mins
Recording time (64GB Card, approx.)	XF-AVC: 160 Mbps: 50 mins / 45 Mbps: 185 mins
Recording file system	FAT32/exFAT
Internal recording format (PAL)	XF-AVC: 3840 x 2160 (160Mbps) / 1920 x1080 (45 Mbps)
Internal recording format (PAL)	MP4: 3840 x 2160 (150Mbps) / 1920 x 1080 (35/17 Mbps)
External recording output (PAL)	SDI* / HDMI output (Camera mode)
	UHD recording mode: 1920 x 1080 25.00P YCC4:2:2 8-bit
	Full HD recording mode: 1920 x 1080 50.00P/25.00P; 1280 x720 50.00P YCC4:2:2 10-bit
	* SDI output with XA55 only
External monitoring	SDI* / HDMI (50.00i)
External monitoring	* SDI output with XA55 only
Recording frame rate (PAL)	MP4: 25.00P (UHD), 50.00P/25.00P (Full HD)
Recording frame rate (PAL)	XF-AVC: 25.00P (UHD), 50.00P/50.00i/25.00P (Full HD)
Slow/Fast motion (PAL)	3840 x 2160 / 25.00P: x2, x4, x10, x20, x60, x120, x600, x1200
	1920 x 1080 / 50.00P: x2, x4, x10, x20, x60, x120, x600, x1200
	1920 x 1080 / 25.00P: x0.5
Pre Recording function	Yes. 3 seconds
Still photos	JPEG up to 3840x2160
Still photos	(Still image resolution is dependent on the video resolution)
Photo storage media	SD Card
Audio
Recording	MP4: MPEG-2 AAC-LC (16-bit 2ch) / LPCM (16-bit 4ch)
Recording	XF-AVC: LPCM (24-bit 4ch)
Audio control	Manual or Auto
	Independent 2ch Line/Mic/Mic+48V input;
	Independent level control per channel (-∞ to +18 dB);
	Independent audio limiters (2 ch);
	Input mic trimming
Reference Tone	1KHz, -12dB / -18dB / -20dB / Off
Microphone attenuation	On/Off (20dB)
Microphone level meter	Yes
Monitoring Panel
Type	Capacitive LCD touch panel
Size	3.0-inch (7.5 cm, approx. 460,000 dots)
Waveform Monitor	No
Focus Assist	Dual Pixel Focus Guide / Peaking / Magnify
Peaking	Selectable Peaking Colour: Red / Blue / Yellow
Zebra	70% or 100% reference level
Markers	Grid (white/grey) and Level (white/grey)
Viewfinder
Size	0.24-inch, approx. 1.56 million dots
Correction lens	+2.0 to -5 dioptre
Inputs/Outputs
Audio Input	XLR 3-pin jack (x2) with 48V phantom power, Line and Mic options on detachable handle, 3.5mm microphone input jack (Supply Voltage 2.4V DC), Built-in Mic
Headphone output	3.5mm stereo mini jack
HDMI Output	HDMI<sup>TM</sup> mini connector
USB	Mini-B, Hi-Speed USB, PTP class supported
SDI output	XA55: 3G-SDI with BNC connector
SDI output	XA50: No
Time code	Superimposed on HDMI output signal (Camera Mode only)
Genlock	No
LAN	No
AV terminal	No
DC input	3.4mm jack
Remote Control Terminal	2.5mm mini jack
Exposure
Exposure metering	Centre-weighted average or segment evaluative (determined by shooting mode)
Exposure metering	No metering: Fireworks mode, Fixed exposure (1/50 sec.)
Exposure Compensation	Highlight AE, Exposure lock, Auto backlight compensation, Exposure compensation amount shown as ±3 when locked or ±2 in AUTO (±8 increments).
Exposure Lock	Yes.
Auto Gain Control setting	Auto / Manual
Auto Gain Control limit	Wide DR Mode selected: 9 - 38dB (1 dB increments)
Auto Gain Control limit	Wide DR Mode Off: 0 -38 dB (1 dB increments)
Shutter Speed
Control Modes	Auto, P, Tv, Manual
Shutter speed (PAL)	1/6 - 1/2000 sec
Shutter speed (PAL)	(1/2 - 1/500 sec in Low Light mode)
Slow Shutter (SLS)	50.00P:
	Auto slow shutter On: 1/25 to 1/500 sec.
	Auto slow shutter Off: 1/50 to 1/500 sec.
	25.00P:
	Auto slow shutter On: 1/12.5* to 1/500 sec. (*Display is 1/12)
	Auto slow shutter Off: 1/25 to 1/500 sec.
Clear Scan	No
White Balance
Auto	Yes
Preset	Daylight (Approx. 5, 600K), Tungsten (Approx. 3, 200K)
Manual setting	Colour Temperature range: 2, 000-15, 000K
Manual setting	Default value for Set 1 and Set 2: 5, 600K
Shooting Modes
Program AE	AUTO Mode
Program AE	Manual Mode: P, Tv, Av, M (manual exposure), SCN (Portrait, Sports, Snow, Beach, Sunset, Night, Low Light, Spotlight, Fireworks)
Infrared shooting mode	Yes (green or white)
Built-in IR lamp	Yes, in detachable Handle Unit.
Built-in IR lamp	Wavelength: 850nm (near-Infrared)
Looks settings	Standard, Neutral, Wide DR, Monochrome
Looks settings	(Adjustment: Sharpness, Contrast, Colour Depth)
Wi-Fi & GPS Specifications
Wifi	No
GPS Information (Optional Accessory)	Location (Latitude/Longitude/Altitude), Coordinated Universal Time (UTC), Satellite reception.
GPS Information (Optional Accessory)	(requires the optional GPS Receiver GP-E2)
Miscellaneous
Tally lamp	Yes, in detachable Handle Unit
Colour Bars (PAL)	Yes. SMPTE or EBU, with 1KHz Tone
Accessory shoe	Yes (cold shoe)
Assignable Buttons	5 assignable buttons: Assignable to (AF/MF) / Face Only AF / Magnification / Focus Guide / BLC Always On / Powered IS / Auto Acquire WB / WB Priority / IR Light / Pre REC / Review Recording / PHOTO / Monitor Channel / Menu / Off
Custom Dial	Av / Tv / M / AGC Limit / Exposure Compensation / Off
Time code
Countup system	Regen / Rec Run / Free Run / Preset (Non-Drop Frame)
Time Code out	Via HDMI out. Superimposed on output, Camera Mode only
Accessories
Supplied	Lens hood with barrier, Mic holder unit, Handle Unit HDU-3, Wireless Controller WL-D89, Lithium battery (CR2025), Compact Power Adapter CA-570, Battery Pack BP-820, AC Cable, Lens Cap
Optional (Includes items not currently on sale)	Canon Battery Pack BP-820/BP-828, Canon AC Adapter CA-570 (included with camera ), Canon Battery Charger CG-800/CG-800E, Canon HDMI cable HTC-100/HTS-100S, Canon Wireless Controller WL-D89, Canon Tele Converter TL-U58, Canon Wide Attachment WA-U58, Canon Soft Carrying Case SC-1000/SC-2000, Canon Wrist Strap WS-20, Canon Shoulder Strap SS-600/SS-650, Canon PROTECT filter 58mm, Canon ND4-L filter 58mm, Canon ND8-L filter 58mm, Canon GPS Receiver GP-E2, Canon Remote Controller RC-V100, Canon Battery Video Light VL-10Li/VL-10LiII, Canon Battery Pack BP-900 series (for VL-10Li/VL-10LiII), Canon Compact Power Adapter CA910/920/930 (charges BP-900 series battery packs), Canon Car Battery Adapter CB-910/920 (for charging the BP-900 series), Canon Interface Cable IFC-300PCU/S / IFC-400PCU
Battery
Battery Pack	Batterie Canon BP-820 (fournie), BP-828 (en option)
Consommation d'énergie (enregistrement)	UHD / (150Mbps / 160Mbps) /25.00P:
	XA55: env. 5W
	XA50: env. 4.8W
Durée d'enregistrement en continu (environ)	UHD / (150Mbps / 160Mbps) /25.00p:
	XA55: 145 minutes (BP-820) / 220 minutes (BP-828)
	XA50: 150 minutes (BP-820) / 230 minutes (BP-828)
	FHD / (35Mbps / 45Mbps) /50.00p:
	XA55: 135 minutes (BP-820) / 210 minutes (BP-828)
	XA50: 140 minutes (BP-820) / 215 minutes (BP-828)
Taille et poids
Dimensions	Environ. 109 x 91 x 214 mm (corps principal uniquement)
	Environ. 140 x 216 x 265 mm
	(Y compris parasoleil, BP-820, support de micro et poignée)
Poids (appareil photo uniquement)	XA55: env. 970g
Poids (appareil photo uniquement)	XA50: env. 960g
Poids (entièrement équipé)	XA55: env. 1445g
	XA50: env. 1435g
	(Y compris pare-soleil, BP-820, support de micro, poignée et une carte mémoire)
Plage de température de fonctionnement	Environ. 0 à 40 ° C, 85% (humidité relative)
Plage de température de fonctionnement	Environ. -5 à 45 ° C, 60% (humidité relative)
