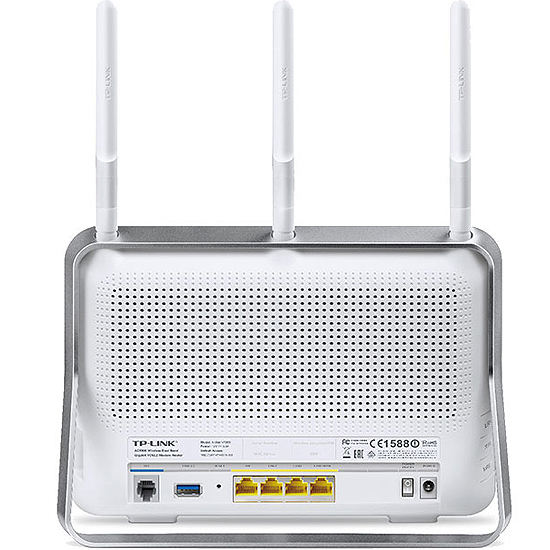

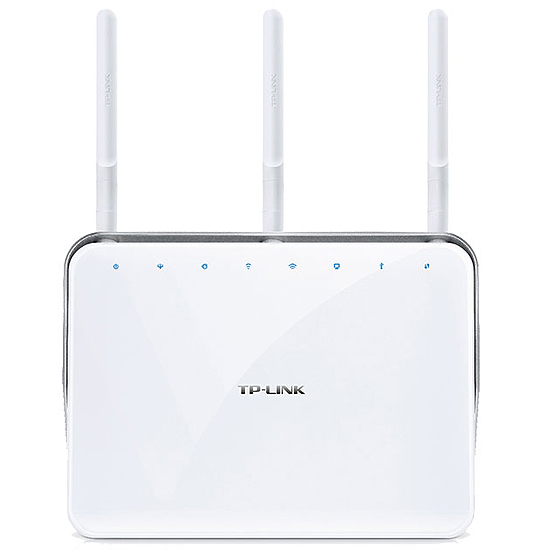

TP-LINK Archer VR900 - Modem Routeur VDSL2/ADSL2+ Gigabit Wi-Fi Double Bande AC1900

SPÉCIFICATIONS MATÉRIELLES

Interface 1 10/100/1000Mbps RJ45 WAN/LAN Port
3 10/100/1000Mbps RJ45 LAN Ports
1 RJ11 Port
2 USB 3.0 Port
Bouton WPS Button, Reset Button, LED On/Off Button, Wireless On/Off Button, Power On/Off Button
Alimentation externe 12V/2.5A
Standards IEEE IEEE 802.3, IEEE 802.3u, 802.3ab
Standards VDSL2 ITU-T G.993.2, Up to 17a profile (POTS)
ITU-T G.993.5 (G.vector)
ITU-T G.998.4 (G.INP）
Standards ADSL Full-rate ANSI T1.413 Issue 2,
ITU-T G.992.1(G.DMT),
ITU-T G.992.2(G.Lite),
ITU-T G.994.1 (G.hs),
ITU-T G.995.1
Standards ADSL2 ITU-T G.992.3 (G.DMT.bis),
ITU-T G.992.4 (G.lite.bis)
Standards ADSL2+ ITU-T G.992.5
Dimensions (LxPxH) 216 x 164 x 36.8mm
Type d'antenne 3 external detachable dual band antennas (RP-SMA)
Gain de l'antenne 3 x 2dBi for 2.4GHz and 3 x 3dBi for 5GHz

CARACTÉRISTIQUES WI-FI

Standards Wi-Fi IEEE 802.11a/n/ac 5GHz,
IEEE 802.11b/g/n 2.4GHz
Vitesse Wi-Fi 1300Mbps at 5GHz, 600Mbps at 2.4GHz
Fréquence 2.4GHz and 5GHz (Supports DFS)
Puissance de transmission <20dBm(EIRP)
Fonctions Wi-Fi Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics
Support 2.4GHz and 5GHz Wireless Schedule
Sécurité Wi-Fi 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA-PSK2
encryptions, Wireless MAC Filtering

CARACTÉRISTIQUES LOGICIELLES

Qualité de Service QoS ATM QoS, Traf c Control(IP QoS)
Sécurité NAT Firewall, Access Control, MAC / IP / URL Filtering, Denial of
Service (DoS), SYN Flooding, Ping of Death, IP and MAC Address Binding
Modes opératoires VDSL/ADSL Modem Router, Wireless Router, 3G/4G Router
Administration Web Based Con guration(HTTP), Remote management,
command Line Interface, SSL for TR-069, SNMP v1/2c, Web Based
Firmware Upgrade, Diagnostic Tools, Free Online Firmware Update
DHCP Server, Client, DHCP Client List, Address Reservation, DHCP Relay
Redirection de port Virtual Server, Port Triggering, DMZ, ALG, UPnP
DNS dynamique DynDns, NO-IP
VPN Pass-Through (ne bloque pas un lien VPN) PPTP, L2TP, IPSec Passthrough
Protocoles Supports IPv4 and IPv6
Protocoles ATM/PPP ATM Forum UNI3.1/4.0, PPP over ATM (RFC 2364),
PPP over Ethernet (RFC2516), IPoA (RFC1577/2225), MER\IPoE (RFC 1483
Routed), Bridge (RFC1483 Bridge), PVC – Up to 8 PVCs
Fonctions avancées Parental Control, Network Address Translation(NAT),
Port Mapping(Grouping), Static Routing, RIP v1/v2(optional), DNS Relay,
DDNS, IGMP V1/V2/V3
Partage USB Support Samba(Storage)/FTP Server/Media Server/Printer Server, 3G/4G Modem
Réseau invité 2.4GHz guest network x 1, 5GHz guest network x 1
VPN IPsec Supports up to 10 IPSec VPN tunnels

AUTRES

Certification CE, RCM, RoHS
Contenu de l'emballage AC1900 Wireless Dual Band Gigabit VDSL/ADSL Modem Router Archer VR900
External Splitter
RJ11 DSL Cable
RJ45 Ethernet Cable
Power Adapter
Quick Installation Guide
Système requis Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, 8, 8.1, 10, MAC OS,
NetWare, UNIX or Linux
Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other
Java-enabled browser
Cable or DSL Modem
Subscription with an Internet Service Provider (for Internet access)

Environnement

Operating Temperature: 0℃~40℃ (32℉ ~104℉)
Storage Temperature: -40℃~70℃ (-40℉ ~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
