FICHE TECHNIQUE
Description du produit |
| Model |

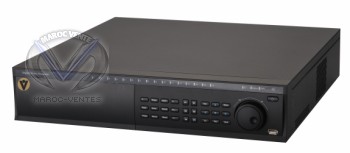

KD-D1614D |
System |
| Main Processor |
High performance embedded microprocessor |
| Operating System |
Embedded LINUX |
| System Resources |
Pentaplex function: live, recording, playback, backup & remote access |
| User Interface |
GUI, on-screen menu tips |
| Control Device |
Front panel, USB mouse, keyboard, IR remote control, network keyboard |
| Input Method |
Numeral/Character/Denotation |
| System Status |
HDD status, data stream statistics, log record, bios version, on-line user etc. |
Video |
| Video Input |
4/8/16 channel, BNC, 1.0Vp-p, 75omh, looping |
| Video Output |
1 channel TV output, BNC, 1.0Vp- p, 75omh, 1 VGA output, 1 HDMI output |
| Video Standards |
PAL(625Line, 50f/s), NTSC(525Line, 60f/s) |
| Video Compression |
H.264 |
| Video Resolution |
Format
D1(4CIF)
CIF
QCIF |
NTSC
704 X 480
352 X 240
176 X 120 |
PAL
704 X 576
352 X 288
176 X 144 |
| Video Recording |
4CIF/CIF/QCIF: PAL 1f/s-25f/s NTSC 1f/s-30f/s；
Dual encoding streams supported; |
| Video Display Split |
Full and multiple screen display, 1 / 4 / 9 / 16 |
| Tour Display |
Support |
| Image Quality |
1~6 level(level 6 is the best) |
| Privacy Masking |
4 self-defined four-sided zones for privacy masking for each camera |
| Camera Lock |
Camera locked for users |
| Camera Adjustment |
Adjust color according to different time period |
| Video Information |
Camera title, time, video loss, camera lock, motion detection, recording |
| TV Output Adjustment |
Adjust TV output color & display zone |
Audio |
| Audio Input |
4/8/16 channel, BNC, 200-2800mV, 30KΩ |
| Bidirectional Talk Input |
1 channel, BNC, 200-2800mV, 30KΩ |
| Audio Output |
1 channel, BNC, 200-3000mv, 5KΩ |
| Audio Compression |
G.711 |
Video Detection & Alarm |
| Motion Detection |
Zones: 396 (22*18) detection zones
Sensitivity: 1~6 (level 6 is highest)
Trigger recording, PTZ movement, tour, alarm, email, matrix output |
| Video Loss |
Trigger recording, PTZ movement, tour, alarm, email, matrix output |
| Camera Blank |
Trigger recording, PTZ movement, tour, alarm, email, matrix output |
| Alarm Input |
16/16/16 channel, programmable, ground, manual open/closed
Trigger recording, PTZ movement, tour, alarm, email, matrix output |
| Relay output |
6/6/6 channel, 30VDC, 1A, NO/NC, form-C |
Hard Disk |
| Hard Disk |
8 SATA ports, 8 HDDs supported, eSATA port |
| Space Occupation |
Audio: 14.4MB/H Video: 56～500MB/H |
| HDD Management |
Hard disk hibernation technology, HDD faulty alarm & Raid(Redundancy) |
Record, Playback & Backup |
| Recording Mode |
Manual, continuous, video detection (including motion detection, camera blank, video loss), Alarm |
| Recording Priority |
Manual •Alarm •Video Detection •Continuous |
| Recording Interval |
1 to 120 minutes (default: 60 minutes), Pre-record up to 30 seconds, Post-record up to 5 minutes |
| Overwrite Mode |
Support |
| Search Mode |
Time/Date, Alarm, Motion Detection & exact search (accurate to second) |
| Playback |
16 channel playback simultaneously, pause, stop, rewind, fast play, slow play, next file, previous file, next camera, previous camera, full screen, repeat, shuffle, backup selection |
| Digital Zoom |
Selected zone can zoom into full screen during playback |
| Backup Mode |
Flash disk/ USB HDD/ USB CD/DVD-RW/ built-in SATA burner/ Network download |
Network |
| Interface |
RJ-45 Port (10/100M) |
| Network Functions |
TCP/IP, UDP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, Email, Alarm Server |
| Remote operation |
Monitor, PTZ control, playback, system setting, file download, log information |
Auxiliary Interface |
| USB Interface |
2 ports, 1 for mouse control, 1 for backup |
| RS232 |
keyboard, PC communication |
| RS485 |
PTZ control |
Environmental |
| Power Supply |
220V 50Hz / 110V 60Hz |
| Power consumption |
25W/30W/40W |
| Working Temperature |
-10°C~+55°C |
| Working Humidity |
10%~90% |
| Atmosphere Pressure |
86kpa~106kpa |
| Dimension |
1.5U, 440mmx460mmx89mm (W*D*H) |
| Weight |
6.5KG(without HDD) |
| Mounting |
Desktop or rack |
