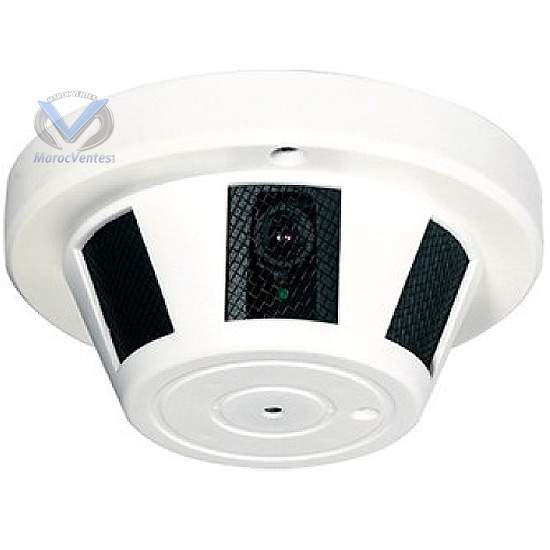

SecuEasy SE-SP130M - CAMERA CACHEE COULEUR TYPE FUMEE 1/3" SONY CCD 420TVL/0,8

Model

SE-SP310M

SE-SP210M

SE-SP130M

SE-SP150M

Image Sensor

1/4" DSP Chipset

1/4" SHARP CCD

 1/3" SONY CCD

1/3" SONY ICX639BK CCD

Resolution (Horizontal)

420TVL

600TVL

Effective Pixels

PAL:500(H)x582(V);NTSC:510(H)x492(V)

PAL: 752(H) x 582(V);
NTSC: 768(H) x 494(V)

Min. Illumination

0 Lux (Infrared Lamps Turn On)

Lens

3.6/6/8mm

Signal System

PAL/NTSC

Video Output

1.0Vp-p@75Ω

S/N Ratio

>48dB

Scanning System

2:1 Interlace

Synchronization

Internal

Gamma Characteristic

>0.45

IR Light Switch

Auto

Backlight Compensation

Auto

Gain Control

Auto

White Balance

Auto

Electronic Shutter

1/50 ~ 1/100,000 sec（PAL）；1/60 ~ 1/100,000 sec（NTSC）

Power Supply

12V DC/500mA

Waterproof Standard

IP66

Operating Temperature

-20~+50℃

Color

White

PCS/CTN

44pcs

Carton Dimension

54X34X40cm

Gross Weight

15.4kg
