Accueil » Téléphonie » Carte Diva Server UM Analog-2P - Voix, Data, Fax PCI
Dialogic

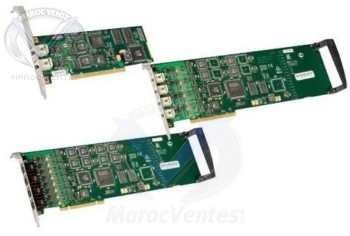

Dialogic 306-385 - Carte Diva Server UM Analog-2P - Voix, Data, Fax PCI

Chargement...Chargement...
Avis
  • Carte Diva Server UM Analog-2P - Voix, Data, Fax PCI
Carte Diva Server UM Analog-2P - Voix, Data, Fax PCI
Obsoléte Fin de vie
The Dialogic Diva UM-Analog Media Boards provide two, four, and eight ports and serve as an excellent communication platform, which scales from 2 to 64 channels (phone lines) per single server. The Diva UM-Analog Media Boards offer voice, speech, conferen

Disponibilité :Obsolète (Fin de vie)
Dernière mise à jour : 28/02/2014
Neuf en boîte
Ce produit n'est plus proposé à la vente
Demander un devis par WhatsAppDemander un Devis

FICHE TECHNIQUE

General Information
Product Name Diva UM 306-385 Voice Board
Marketing Information The Dialogic Diva UM-Analog Media Boards provide two, four, and eight ports and serve as an excellent communication platform, which scales from 2 to 64 channels (phone lines) per single server. The Diva UM-Analog Media Boards offer voice, speech, conferencing, VoIP, modem and fax features, and can serve as a base for many communication applications. The boards are supported by most standard applications, and are also suitable for new application development. Diva UM-Analog Media Boards are available in Low Profile, Half Size, or Full Size form factors and are available in both PCI and PCI Express (PCIe) versions. Diva UM-Analog can be seamlessly combined with other Dialogic Diva Media Boards, such as E1/T1, ISDN PRI/BRI, and VoIP.
Product Type Voice Board
Technical Information
Processor 100 MHz -32-Bit RISC, 131 MIPS
Digital Signal Processing 32.76 MHz - 65 MIPS
Interfaces/Ports
Host Interface 66 MHz PCIU
Telephony Connector 2 x RJ-11
Management & Protocols
Voice Codec G.711
  G.726
  G.729
  GSM
Memory
Standard Memory 16 MB SDRAM
Physical Characteristics
Form Factor PCI
Miscellaneous
Package Contents:
  • Diva UM 306-385 Voice Board
  • LP Bracket
    • Additional Information:
  • Up to Eight Diva Media Boards per single server
  • Sophisticated hardware design
  • Comfort Noise Generation (CNG)
  • Pulse and tone dialing
  • Loop start signaling
  • 1 x Channel fax (V.34)
    • Certifications & Standards: ISO 9002
    Green Compliance Yes
    Green Compliance Certificate/Authority RoHS
