Accueil » Sécurité » Enregistreur numérique NVR » Enregistreur vidéo DVR Dahua 16 Canaux 5en1 HDCVI/AHD/IP/ANALOGIQUE /TVI jusqu'à 1080N. Audio Dahua.
Dahua

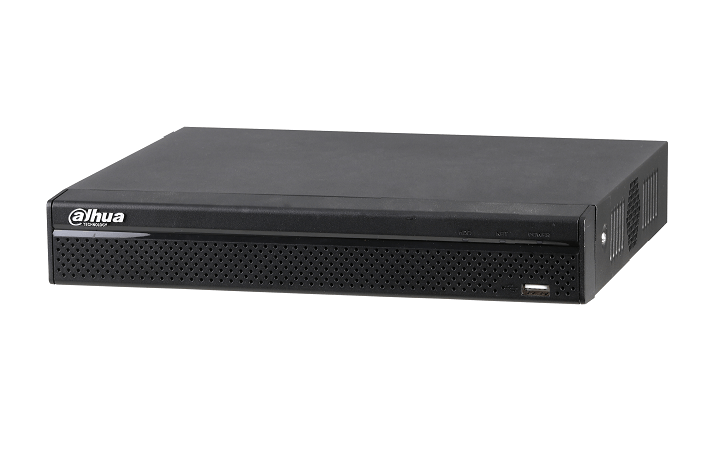

Dahua XVR4116HS - Enregistreur vidéo DVR Dahua 16 Canaux 5en1 HDCVI/AHD/IP/ANALOGIQUE /TVI jusqu'à 1080N. Audio Dahua.

Chargement...Chargement...
Avis
  • Enregistreur vidéo DVR Dahua 16 Canaux 5en1 HDCVI/AHD/IP/ANALOGIQUE /TVI jusqu
  • Enregistreur vidéo DVR Dahua 16 Canaux 5en1 HDCVI/AHD/IP/ANALOGIQUE /TVI jusqu
  • Enregistreur vidéo DVR Dahua 16 Canaux 5en1 HDCVI/AHD/IP/ANALOGIQUE /TVI jusqu
Enregistreur vidéo DVR Dahua 16 Canaux 5en1 HDCVI/AHD/IP/ANALOGIQUE /TVI jusqu
Obsoléte Fin de vie
Enregistreur vidéo DVR Dahua 16 Canaux 5en1 HDCVI/AHD/IP/ANALOGIQUE /TVI jusqu'à 1080N. Audio Dahua.

Disponibilité :Obsolète (Fin de vie)
Dernière mise à jour : 23/02/2018
Neuf en boîte
Ce produit n'est plus proposé à la vente
Demander un devis par WhatsAppDemander un Devis

Quick Specs

  • FabricantDahua

Points forts

  • Fabricant : Dahua

Ce que nous offrons

  • Livraison rapide partout au Maroc
  • Satisfaction garantie
  • Service client à vie
DHI-XVR-4116HS Specifications
System
Main ProcessorEmbedded Processor
Operating SystemEmbedded LINUX
Display
Interface1 HDMI ,1 VGA
Resolution1920×1080, 1280×1024, 1280×720, 1024×768
Multi-screen Display4CH: 1/4/6

8CH: 1/4/8/9/16

16CH: 1/4/8/9/16/25

OSDCamera title, Time, Video loss, Camera lock, Motion detection, Recording
Video Detection and Alarm
Trigger EventsRecording, PTZ, Tour, Alarm Out, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
Video DetectionMotion Detection, MD Zones: 396 (22 × 18), Video Loss and Tampering
Alarm inputN/A
Relay OutputN/A
Tracking Trigger EventN/A
Playback and Backup
Playback4CH: 1/4

8CH: 1/4/9

16CH: 1/4/9/16

Search ModeTime /Date, Alarm, MD and Exact Search (accurate to second)
Playback FunctionPlay, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom
Backup ModeUSB Device/Network
Storage
Internal HDD1 SATA Port, up to 6TB capacity
HDD ModeSingle
eSATAN/A
Auxiliary Interface
Front CoverN/A
USB2 USB Ports (2 USB 2.0)
RS232N/A
RS4851 Port, for PTZ Control
Third-party Support
Third-party SupportDahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more
Audio and Video
HDCVI Camera Input4/8/16 Channel
IP Camera Input4+1: each channel up to 2MP

8+2/16+2:each channel up to 5MP

Audio In/Out1/1
Two-way TalkReuse audio in/out, RCA
Recording
CompressionH.264
Resolution1080N, 720P, 960H, D1, HD1, BCIF, CIF, QCIF
Record RateMain Stream:

4CH:1080N/720P/960H/D1/HD1/BCIF/CIF/QCIF (1~25/30fps)

8/16CH:1080N(12fps)/720P(15fps)/960H/D1/HD1/BCIF/CIF/QCIF (1~25/30fps)

Sub steram:D1/CIF/QCIF(1~25/30fps)

Bit Rate1Kbps ~ 6144Kbps Per Channel
Record ModeManual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop
Record Interval1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec
Network
Interface1 RJ-45 Port (100M)
Network FunctionHTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server,P2P, IP Search (Support Dahua IP camera, DVR, NVS, etc.)
Max. User Access128 users
Smart PhoneiPhone, iPad, Android
InteroperabilityONVIF 2.4.1, CGI Conformant
Electrical
Power SupplyDC12V/2A
Power Consumption<10W (Without HDD)
Environmental
Operating Conditions-10°C ~ +55°C (+14°F ~ +131°F), 86 ~ 106kpa
Storage Conditions0°C ~ +50°C (+32°F ~ +122°F), 0 ~ 90% RH
Construction
DimensionsCompact 1U, 260×236×48mm(10.2″×9.3″×1.9″)
Net Weight0.75kg ( 1.7lb) (without HDD)
Gross Weight1.5kg (3.3lb)
InstallationDesktop installation
Certifications
CertificationsFCC: Coming soon
UL: Coming soon

General

FabricantDahua
