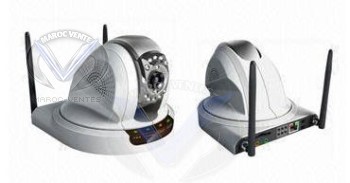

KD-NVC100WD-PTR

Wireless  PT dome, 1/4 CMOS Sensor,1 Lux,VGA Definition

Operation system

Linux

Pan/Tilt

Motorized Pan 355°Tilt 90°

Video compression

H.264 Main Profile@Level 3/MJPEG optional

Video Definition

VGA: 640x480, QVGA: 320x240

Video Parameters

Brightness,Hue,Contrast,Saturation,Image quality. Control of Lens  ( AI/EE.BLC,AGC,AWB)

Streaming Format

Optional Video Streaming or Audio&Video composite Streaming

Video Frame Rate

PAL:1-25frams/second NTSC: 1-30frames/second

Video Compression Bitrate

16Kbit/S～8Mbit/S

Audio Input

1channel,composite

linear Audio input

1channel , impedance: 1kΩ

Audio Compression

G.726

Audio Output

1channel linear / inner set speaker / inner set buzzer

Audio talk-back

Built-in Mic

Supported Protocols

TCP, UDP, IP, HTTP, FTP, SMTP, DHCP, DNS,ARP, ICMP, POP3, NTP, IPsec, UPNP,RTP,RTCP

System Interface

10Base-T/100Base-TX Ethernet port,

WiFi port（802.11b/g wireless network）/ WPA2

SD card (maximum 32GB)

USB connector

Support USB storage device and USB communication module

LED

Inner set IR lights ,Distance in night: radii10meters

Alarm Input

1 channel on/off input,supporting NO(normally open) or NC(normally close) sense.

Alarm Output

1 channel on/off output,120VAC 1A/24VDC 1A

Input Power Supply

DC 12V,1A

Maximum Power

Less than 6W

Operating Temperature

-10 ~ +55°C

Storage temperature

-20 ~ +70°C

Operating Humidity

RH85%MAX

System Requirements

Operation System:Microsoft Windows 98/ME/2000/XP/2003
Browser:Microsoft Internet Explorer 5.x or above

Dimension

14cm(L)*14cm(W)*10.8(H)

Net weight

0.58kg
