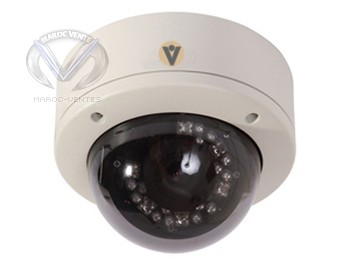

Visio KD-NVC85D-50S - IP Dome Camera adapting Port Ethernet and power supply Port Alarm
Chargement... Avis
FICHE TECHNIQUE
Description du produit | ||
| KD-NVC85D-50S | 520TVL, 0 LUX,（IR ON）1/3 Super HAD CCD | |
| Lens | Build-in 4-9mm high quality vari-focal lens inside | |
| Video compression | H.264 Main Profile@Level 3/MJPEG optional | |
| Video Frame Rate | CCD | PAL: 1-25frames/second |
| NTSC:1-30frames/second | ||
| Video Compression Bitrate | 16Kbit/S～8Mbit/S | |
| Audio Input | 1channel, linear input | |
| Audio Compression | G.726 | |
| Audio Output | 1channel,RCA interface, linear output | |
| Supported Protocols | TCP, UDP, IP, HTTP, FTP, SMTP, DHCP, DNS,ARP, ICMP, POP3, NTP, IPsec, UPNP,RTP,RTCP | |
| System Interface | RS232 port (convert to 10M/100M self-adapting Ethernet port, and power supply, Alarm port) | |
| Support mobile suveillance | ||
| Alarm Input | 1 channel on/off input, supporting NO(normally open) or NC(normally close) sense. | |
| Alarm Output | 1 channel on/off output,120VAC 1A/24VDC 1A | |
| Input Power Supply | DC 12V,1A | |
| IR distance | 15～20m | |
| Operating Temperature | -20 +55 | |
| Operating Humidity | RH85%MAX | |
| Maximum Power | Less than 9W （IR ON） | |
| Dimension | 11.3cm(H)*14.1cm(Φ) | |
| Net weight | 600g | |
