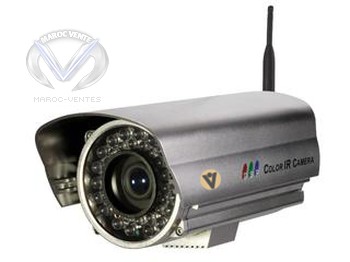

Visio KD-NVC22WD-50S - Camera Waterproof 520 TVL Port RS485 Port WIFI
Chargement...
FICHE TECHNIQUE
Description du produit | ||
| KD-NVC22WD-50S | 520 TVL, 0.5LUX,1/3 Super HAD CCD | |
| Auto Iris Control | DC drive | |
| IR LED Distance | 80m (25mm lens) (IR On) | |
| Video compression | H.264 Main Profile@Level 3 , M-JPEG | |
| Video Frame Rate | CCD | PAL: 1-25frames/second
NTSC:1-30frames/second |
| Video Compression Bitrate | 16Kbit/Sïœ8Mbit/S | |
| Supported Protocols | TCP, UDP, IP, HTTP, FTP, SMTP, DHCP, DNS,ARP, ICMP, POP3, NTP, IPsec, UPNP,RTP,RTCP | |
| System Interface | 10M/100M Ethernet(RJ45), Power, and Audio port; RS485,Alarm,and Reset cable | |
| WIFI Port:802.11b/g; Antenna: 5DB / WPA2 | ||
| Support built-in SD card (Maximum 32GB) | ||
| Support mobile suveillance | ||
| Audio Input | 1channel, RCA interface,linear input | |
| Audio Compression | G.726 | |
| Audio Output | 1channel,RCA interface, linear output | |
| Alarm Input | 1 channel on/off input, supporting NO(normally open) or NC(normally close) sense. | |
| Alarm Output | 1 channel on/off output,120VAC 1A/24VDC 1A | |
| IP Grade | IP66 | |
| Input Power Supply | DC 12V,2A | |
| Operating Temperature | -20ïœ60 â | |
| Operating Humidity | RH90%MAX | |
| Maximum Power | Less than 8W (IR on) | |
| Dimension | 23.3cm(L)*12.4cm(W)*11.8cm(H) | |
| Net weight | 2.18kg | |
