Eaton 9E2000I
Menu-
Onduleur On-Line Double Conversion 2000VA Tour
Sur commande
10 062,00 Dh TTC
9 660,00 Dh TTC
8 753,03 Dh TTC
7 294,19 Dh HT

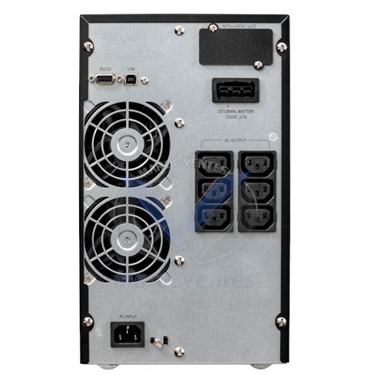

Specifications Product Code 9E2000i Specifications Product Code 9E2000I Description EATON 9E2000I 2000VA/1600W Tower Online double conversion USB UPS General Topology Online double conversion Configuration Tower Part Number 9E2000I Rating (VA/Watts) 2000/1600 Dimensions (H x W x D, mm) 399 x 330 x 190 Weight (kg) 22.4 Electrical Input Connection (1) IEC-320-C14 Input Voltage Range 176-300V without derating (up to 100-300V with derating) Nominal Voltage 208/220/230/240V Frequency 50/60 Hz autoselection Frequency Range 40-70 Hz Electrical Output Voltages 208V*/220V/230V/240V ±1% Voltage THD <2% for 100% linear load Outlets (6) IEC-320-C13 Overload Capacity 105%-130% : 60s, 130%-150% : 10s, >150% : ≥ 300ms Efficiency (Normal Mode) Up to 91% in Online mode Output Frequency 50/60 Hz autoselect Communications Communication Ports 1 USB port + 1 RS232 serial port (USB and RS232 ports cannot be used simultaneously) Communication Slot 1 slot for Network-M2, ModBus-MS or Relay-MS cards Power Management Software Intelligent Power Editions Environmental & Standards Audible Noise <37 dB @ typical load Operating Temperature 0 to 40°C Safety markings IEC/EN 62040-1 EMC Markings IEC/EN 62040 -2 Approvals CE, CB report (TUV) - Plus d'images (1)
