HARDWARE FEATURES

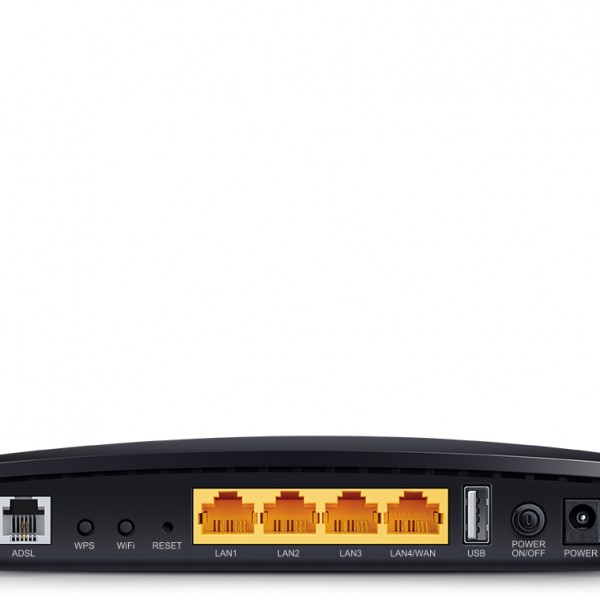

INTERFACE 1 10/100Mbps RJ45 WAN/LAN Port
3 10/100Mbps RJ45 LAN Ports
1 RJ11 Port
1 USB 2.0 Ports
BUTTON 1 Power On/Off Button
1 Wi-Fi On/Off Button
1 WPS Button
1 RESET Button
POWER SUPPLY 12VDC/1.5A
IEEE STANDARDS IEEE 802.3, 802.3u, 802.3ab
ADSL STANDARDS Full-rate ANSI T1.413 Issue 2
ITU-T G.992.1(G.DMT), ITU-T G.992.2(G.Lite)
ITU-T G.994.1 (G.hs), ITU-T G.995.1
ADSL2 STANDARDS ITU-T G.992.3 (G.DMT.bis),
ITU-T G.992.4 (G.lite.bis)
ADSL2+ STANDARDS ITU-T G.992.5
DIMENSIONS ( W X D X H ) 8.0 x 5.6 x 1.3 in. (202mm x 141mm x 33.6mm)
ANTENNA TYPE Undetachable dual band external antennas
ANTENNA GAIN 2dBi for 2.4GHz and 3dBi for 5GHz

WIRELESS FEATURES
WIRELESS STANDARDS IEEE 802.11ac/n/a 5GHz
IEEE 802.11n/g/b 2.4GHz
WIRELESS SPEEDS 5GHz: Up to 867Mbps
2.4GHz: Up to 300Mbps
FREQUENCY 2.4GHz and 5GHz
TRANSMIT POWER <20dBm(EIRP)
WIRELESS FUNCTIONS Enable/Disable Wireless Radio, WDS Bridge, WMM,
Wireless Statistics
WIRELESS SECURITY 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryption,
Wireless MAC Filtering
WIRELESS SCHEDULE Support 2.4GHz and 5GHz Wireless Schedule

SOFTWARE FEATURES
QUALITY OF SERVICE ATM QoS, Bandwidth Control
SECURITY NAT Firewall, Access Control, MAC / IP / URL Filtering,
Denial of Service (DoS), SYN Flooding, Ping of Death
IP and MAC Address Binding
IPV6 IPv6 and IPv4 dual stack
OPERATING MODES ADSL Modem Router, Wireless Router
MANAGEMENT Web Based Configuration(HTTP), Remote management,
Command Line Interface,
SSL for TR-069, SNMP v1/2c, Web Based Firmware Upgrade,
Diagnostic Tools
DHCP Server, Client, DHCP Client List,
Address Reservation, DHCP relay
PORT FORWARDING Virtual server, Port Triggering, DMZ, ALG, UPnP
DYNAMIC DNS DynDns, NO-IP
VPN PPTP, L2TP, IPSec Passthrough
ATM FEATURES ATM Forum UNI3.1/4.0,
PPP over ATM (RFC 2364),
PPP over Ethernet (RFC2516),
IPoA (RFC1577/2225),
Bridge (RFC1483 Bridge)
PVC – Up to 8 PVCs
ADVANCED FUNCTIONS Parental Control
Network Address Translation (NAT);
Port Mapping (Grouping), Static Routing, RIP v1/v2 (optional);
DNS Relay, DDNS, IGMP V1/V2/V3
USB SHARING Support Samba(Storage)/FTP Server/Media Server/
Printer Server
GUEST NETWORK 2.4GHz guest network × 1
5GHz guest network × 1
IPSEC VPN Supports up to 10 IPSec VPN tunnels

OTHERS
CERTIFICATION CE, FCC, RoHS

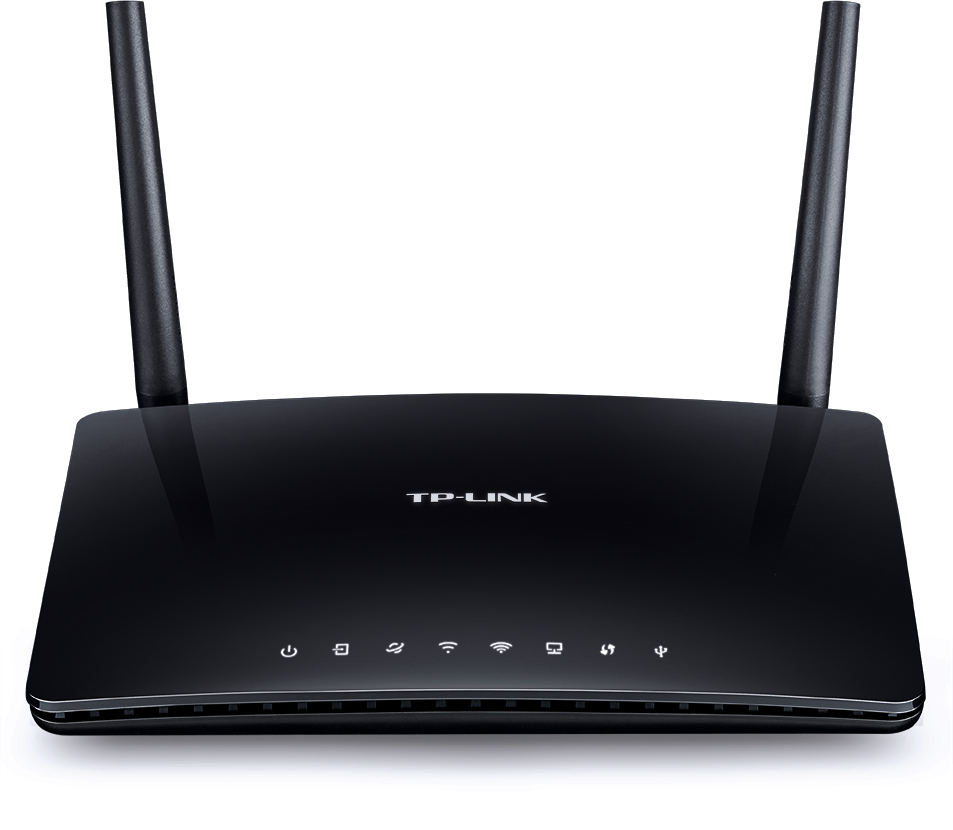

PACKAGE CONTENTS AC1200 Wireless Dual Band ADSL2+ Modem Router
External Splitter
RJ-11 Telephone Cable
RJ-45 Ethernet Cable
Quick Installation Guide
Power Adapter
SYSTEM REQUIREMENTS Windows 10/8/7/Vista/XP or Mac OS or Linux-based
operating system
ENVIRONMENT Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
