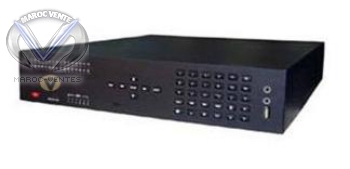

Visio KD-D3204
Menu-
Standalone DVR H.264 DVRs High Performance Embedded Rocessor
Obsolète (Fin de vie)Ce produit n'est plus proposé à la vente
FICHE TECHNIQUE:
Description:
MODEL KD-D3204 Main processor High Performance Embedded Rocessor Operation system VxWorks embedded RTOS VIDEO
Format NTSC/PAL Compression MPEG4/H.264 Input 32CH BNC(1.0Vp-p,75Ω) Main output 2CH BNC(1.0Vp-p,75Ω), 1CH VGA(800×600,1024×768,1280×1024) Matrix output N/A AUDIO
Compression standard G.723/ADPCM Input 16CH, BNC(linear voltage,10KΩ) Ouput 1CH, BNC(linear voltage,600Ω) Voice Communication independent CH for 2 way voice communication(miniJACK) DISPLAY
Resolution D1 704×576(PAL) 704×480 (NTSC) Frame rate 25(PAL)/30(NTSC)FPS Division 1/4/6/9/13/16/25/36CH, Digital Zoom RECORD
Resolution CIF 352×288(PAL) 352×240(NTSC) Frame rate 25(PAL)/30(NTSC)FPS, all real time, flexible Quality 5 Levels(Low, Normal, Good, Fine, Super) Mode Manual/Schedule/Motion detection/Alarm Sensor/Event/Prerecord/Auto start record Playback Support 4CH simultaneously playback HDD
Basic storage 6 SATA HDD Capacity, Max.:2T/HDD, independent operation indicates light ALARM
Input 12CH Output 3 CH OTHER
System resource Multi-CH recording, playback,monitoring and network operation simultaneously Network RJ45, auto adapt 10/100M Ethernet Support PPPoE Comunication Port 1 RS232 port, 1RS485 port, 1RS422 port, 3 USB2.0 port Backup Removable HDD, USB DVD/CD writer, Network Power supply AC100-240V 50/60Hz Unit weight 15KG Dimensions(W×H×D) 440×100(including standing points)×460 mm, 2U Shipping dimensions(W×H×D) 538×538×253 mm, 2U - Revues du produit
