Model

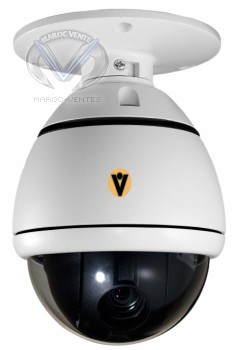

 KD-T11 (indoor)

CCD

 1/4" Interline Transfer CCD

Max. Pixels

 795(H)×596(V) 470K PAL

Effective Pixels

 752(H)×582(V) 440K PAL

Horizontal Res.

 500 TVL(Color),570 TVL(B/W)

S/N Ratio

 50dB(AGC Off)

Zoom

 10X optical zoom, 10X digital zoom

Focal Length

 F1.8, f=3.8~38mm

Min. Illumination

 0.7Lux (Color), 0.02Lux (B/W), 50 IRE

Day & Night

 Auto / Day / Night (ICR)

Focus

 Auto / Manual / Semi-Auo

Iris

 Auto / Manual

Shutter Speed

 128X~1/120000 sec

AGC

 Normal / High / Off

White Balance

 Auto / Manual / (Red, Blue Gain Adjustable)

BLC

 Low / Middle / High / Off

Flickerless

 Selectable

SSNR

 Low / Middle / High / Off

Pan / Tilt Range

 Pan: 360°(Endless), Tilt: 180°(Auto Flip),95°(Normal)

Pan / Tilt Speed

 Preset: 360°/sec,Swing: 1~180°/sec
 Manual: 0.05~360°/sec(Proportional to zoom)

Preset

 127 Preset ( Lable, Camera Image Setting )

Pattern

 4 Patterns, 1200 commands ( About 5 minutes)/Pattern

Swing

 8 Swing

Group

 8 Groups ( 20 actions entities per group )

Other Functions

 Auto flip, Auto parking, Power up action etc

Communication

 RS-485

Protocol

 Pelco-D, Pelco-P selectable

Privacy Zone

 4 zones

Alarm Input

 4 Inputs

OSD

 Menu / PTZ information etc

IP66 for outdoor use

 Yes

Rated Power

 MV-X10t-D: DC12V / 0.8A

Dimention

 Dome: φ115, Housing: φ147.51×41(H)mm

Weight

 About 1 Kg

Operating Temp

 0°~+40°

Dimension

 Please refer to the right figure
