Visio KD-NVS801D
Menu-

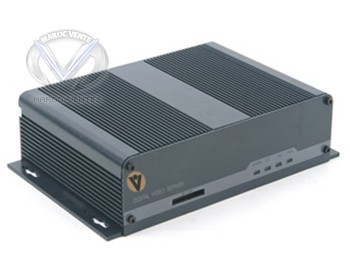

Network Video Server with 1ch D1 Video and 1CH Audio Input
Obsolète (Fin de vie)Ce produit n'est plus proposé à la vente
SPECIFICATION
Description
Video Input 1 channel composite video, PAL or NTSC BNC interface,1.0Vp-p,impedance 75Ohms
Video Compression H.264 Main Profile@ Level 3 Dual-Streaming H.264/ MJPEG option Video Definition PAL: 352*288 (CIF), 704*288 (2CIF), 704*576 (D1);
NTSC: 352*240 (CIF), 704*240 (2CIF), 704*480 (D1)VVideo Parameters Brightness, Hue, Contrast, Saturation, Image quality. Streaming Format Optional Video Streaming or Audio &Video composite Streaming Video Frame Rate PAL: 1-25 frames/second NTSC:1-30 frames/second
Video Compression Bit rate 16Kbit/S～16Mbit/S Video Output 1 compound video, PAL or NTSC; BNC, level: 1.0Vp-p, impedance: 75Ω, Audio Compression G.726, G711, ADPCM Audio Input 1 channel, RCA port, liner input, Impedance:1KOhms Audio Output 1channel,RCA port, linear output Audio talk-back input 1 channel ,MIC port Overlaid Caption Channel, Date, Bit rate. position adjustable Communication Interface 1 10M/100M self-adapting Ethernet port, RS485 port, RS232 port Built-in some high-speed protocols and decoding protocols.
Support public protocols.
Support CDMA, GPRS mobile network.
Supports 802.11b/g wireless network.( NVS801WD/NVS802WD/NVS804WC)
Storage interface 1Support SD card storage and snapshot, SD2.0 standard. (Max 32G SD card), Support FTP server. Alarm Input 4 channel on/off input, supporting NO (normally open) or NC (normally close) sense. Alarm Output 4 channel on/off output,120VAC 1A/24VDC 1A Alarm Message Sending alarm message by Email. Input Power Supply DC 12V,1A Maximum Power Less than 7W Operating Temperature -10 ~ +55℃ Operating Humidity 10 ~ 85% Dimension 205mm(L) * 50mm(H)* 130mm(D) - Revues du produit
