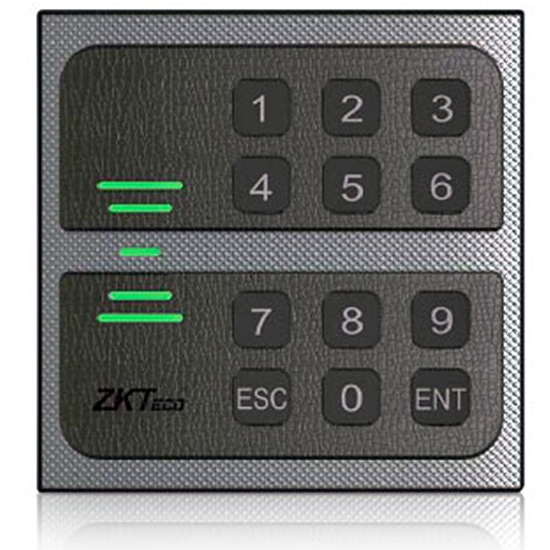

ZKTeco KR502E
Menu-
Terminal de contôle d'accès Esclave, Lecteur RFID et digicode
Obsolète (Fin de vie)Ce produit n'est plus proposé à la vente
Key Features
- 125KHz proximity and 13.56MHz Mifare card serial number
- Read Range: Up to 10CM(125KHz)/5CM(13.56MHz)
- 26/34 bit Wiegand(Default)
- External LED Control
- External Buzzer Control
- Indoor / Outdoor Operation
- Solid Epoxy Potted
- Waterproof IP64
- Reverse Polarity Protection
- Dermatoglyph Design
Fiche Technique
Model
KR502E
KR502M
Read Range
Up to 10CM
Up to 5CM
Reading Time (Card)
≤200ms
Power / Current
DC 6-14V / Max.70mA
2ea (External LED Control, External Buzzer Control)
Output Format
26bit Wiegand (default)
34bit Wiegand (default)
LED Indicator
2 Color LED Indicators (Red and Green)
Beeper
Yes
Operating Temperature
-20° to +65°C
Operating Humidity
10% to 90% relative humidity non-condensing
Color
Black and Gray
Material
ABS+PC with texture
Dimension (W x H x T) mm
86*86*16
Weight
150g
Index of Protection
IP64
