Visio KD-NVC710A
Menu-

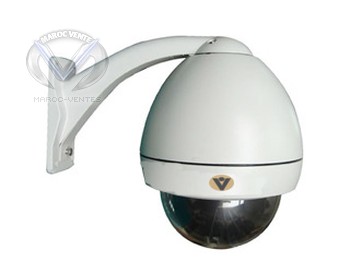

IP high speed dome camera
Obsolète (Fin de vie)Ce produit n'est plus proposé à la vente
FICHE TECHNIQUE
Description du produit
KD-NVC710A IP high speed dome, Economical Network Spec
Video compression H.264 Main Profile @Level 3/ MJPEG Video Compression Bit rate 16Kbit/S～8Mbit/S Supported Protocols TCP, UDP, IP, HTTP, FTP, SMTP, DHCP, DNS,ARP, ICMP, POP3, NTP, IPsec, UPNP,RTP,RTCP Streaming Format Optional Video Streaming or Audio &Video composite Streaming Audio streaming Two Way Audio connector(Optional) Local Storage SD card, Max. 5G(Optional) System Interface 10M/100M self-adapting Ethernet port, power supply cable.
Support mobile surveillance
Speed Dome Spec
preset
128 presets, can be labeled with editable title
Pan rotation range
360° Endless
Tilt range
Tilt 90°
Manual pan speed
0.5°—240°/S
Manual vertical speed
0.5°—100°/S;
IP Grade
IP66
Cruse tracking
2pcs
Communication
RS485-422,AD,BI-PHASS code, axis visual control
Baud rate (RS485)
2400/4800/9600/19200bps
Environmental
Operating Temp 0°C-＋60°C(Indoor dome);-40°C-70°C(Outdoor dome) Operating Humidity RH90%MAX Power Supply DC12V(2A)—DC15V(2A)
Power Consumption 25W（Inside);50W(Outside)
