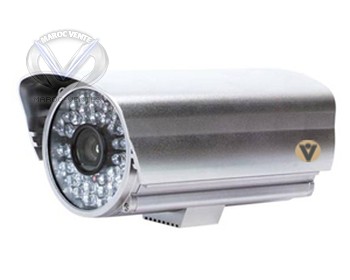

KD-NMP110 (Wired)

Sensor

1/3 inch CMOS, Minimum illumination 0 Lux (IR on)

IR distance

50m(6mm,8mm,12mm,16mm lens optional)

Video resolution

1600 x 1200,1280x960,1280 x 720, 800 x 600

Video parameters

Brightness, hue, contrast, saturation and image quality

Streaming Format

Video Streaming or Audio &Video composite Streaming

Video Frame Rate

1600 x 1200

1280 x 960

1280 x 720

800 x 600

Video Compression Bit rate

16Kbit/S_8Mbit/S

Video output

1channel composite video output  (CMOS NOT SUPPORTED)

Audio Input

1channel,linear input, Input Impedance:1KOhms

Audio Compression

G.726

Audio Output

1channel, linear output,

two-way talk input

Support Audio two-way talk

Image Encrypting

Digital watermarking,AES Encrypt

Local recording

SD card recording and snapshot

Support IP-San storage

Supported Protocols

TCP, UDP, IP, HTTP, FTP, SMTP, DHCP, DNS,ARP, ICMP, POP3, NTP, Ipsec, UpnP, RTP, RTCP

System Interface

10Base-T/100Base-TX Ethernet port

1 RS485

Support mobile suveillance

Alarm input

1channel on/off input, support NO (open) or NC (closed)

RFID technology，link with wireless detectors

Alarm output

1 channel on/off, 120VAC 1A/24VDC 1A

Power supply

DC 12V 2A

Power consumption

13 W Max

Dimension

24.8cm(L)*11.0cm(W)*11.0cm(H)

Net weight

2.18kg
