Dialogic 306-385
Menu-

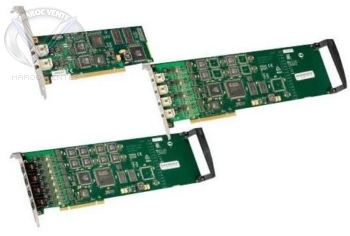

Carte Diva Server UM Analog-2P - Voix, Data, Fax PCI
Obsolète (Fin de vie)Ce produit n'est plus proposé à la vente
FICHE TECHNIQUE
General Information
Product Name Diva UM 306-385 Voice Board Marketing Information The Dialogic Diva UM-Analog Media Boards provide two, four, and eight ports and serve as an excellent communication platform, which scales from 2 to 64 channels (phone lines) per single server. The Diva UM-Analog Media Boards offer voice, speech, conferencing, VoIP, modem and fax features, and can serve as a base for many communication applications. The boards are supported by most standard applications, and are also suitable for new application development. Diva UM-Analog Media Boards are available in Low Profile, Half Size, or Full Size form factors and are available in both PCI and PCI Express (PCIe) versions. Diva UM-Analog can be seamlessly combined with other Dialogic Diva Media Boards, such as E1/T1, ISDN PRI/BRI, and VoIP. Product Type Voice Board Technical Information
Processor 100 MHz -32-Bit RISC, 131 MIPS Digital Signal Processing 32.76 MHz - 65 MIPS Interfaces/Ports
Host Interface 66 MHz PCIU Telephony Connector 2 x RJ-11 Management & Protocols
Voice Codec G.711 G.726 G.729 GSM Memory
Standard Memory 16 MB SDRAM Physical Characteristics
Form Factor PCI Miscellaneous
Package Contents: - Diva UM 306-385 Voice Board
- LP Bracket
Additional Information: - Up to Eight Diva Media Boards per single server
- Sophisticated hardware design
- Comfort Noise Generation (CNG)
- Pulse and tone dialing
- Loop start signaling
- 1 x Channel fax (V.34)
Certifications & Standards: ISO 9002 Green Compliance Yes Green Compliance Certificate/Authority RoHS - Revues du produit
