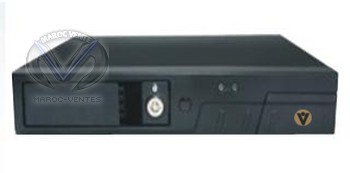

DVR with 4CH Small Size M-JEPG
Obsolète (Fin de vie)Ce produit n'est plus proposé à la vente
FICHE TECHNIQUE
Description du produit
Item
KD-814 Channel
4 CH Video Input/ Output
NTSC/PAL : BNC 4CH In / 1CH Out (Composite) Display Frame Rate (Quad Mode)
NTSC : 120 fps (4 x 30 fps) ; PAL: 100 fps (4 x 25 fps) Recording Frame Rate (Quad Mode)
NTSC : Max. 60 fps ; PAL : Max. 50 fps Recording Frame Rate (Each Mode)
NTSC: 3 fps ~ Max. 30 fps ; PAL : 3 fps ~ Max. 25 fps adjustable (Each Mode) Compression Format
Enhanced MJPEGVideo Quality : Low@12KBytes ; Normal@15KBytes ; High@20KBytes Hard Disk Capacity
SATA HDD X1 , Max 500GB Recording Time
15 days continuous recording at 25 fps with 500G byte HD Recording Mode
Continuous, motion detection, time schedule USB V1.1 Port For Media Backup
Yes PS/2 Mouse
Yes IR Remote Control Unit
Optional Power Supply
100-240VAC / DC12V 3A (Adapter Included) Dimensions (L x W x H)
250 x 218 x 42 mm - Revues du produit
