Visio KD-616
Menu-

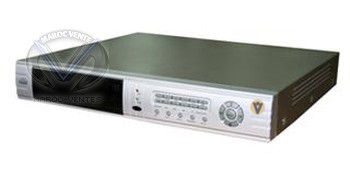

DVR with 16CH M-JEPG
Obsolète (Fin de vie)Ce produit n'est plus proposé à la vente
FICHE TECHNIQUE
Description du produit
Model KD-616
Compression Format Motion JPEG
Video Output BNC 2-channel, S-Video 1-channel
Video Input BNC 16-channelv
Display Resolution NTSC: 720×480 PAL: 720×576
Recording Resolution NTSC: 720×240 / 360×240 PAL: 720×288 / 360×288
Display Frame Rate NTSC 480fps / 16×30fps
PAL 400fps / 16×25fps
Record Frame NTSC Max.120fps / 16×7.5fps
Rate PAL Max.100fps/16×6.25fps
Audio Input -8dB --- 22k, RCA×4
Audio Output -8dB --- 92dB, RCA× 2
Sensor Input NO or NC, 16-channel
Relay Alarm Output NO or NC, 1-channel
Recording Mode 24 hrs.×7 days schedule, motion detection, sensor or network triggered
Simplex/Duplex/Triplex Triplex
Network Interface RJ45 for LAN & Internet
VGA Output Optional
PTZ Control RS485, 4 protocols (PELCO-D, PELCO-P, NEON&SAMSUNG) supported
HDD Capacity Default: One removable caddy + one fixed rack Option: One CD-RW+ one fixed rack
Remote Included
Power DC12V/ 5A (Adaptor Supply)
Storage -20~65℃ / 20~95%RH Operation -5~50℃ / 20~85%RH
Dimension ( Lx Wx H ) 430x385x65mm
