Visio KD-E3390DR
Menu-

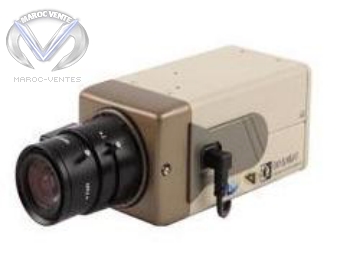

Box Camera 1/3 Super HAD CCD
Obsolète (Fin de vie)Ce produit n'est plus proposé à la vente
FICHE TECHNIQUE:
Description du produit:
Model KD-E3390DR Image Pick-Up Device 1/3” SUPER HAD CCD TV System NTSC / PAL Total Pixels NTSC: 811(H) X 508(V) / PAL: 795(H) X 596 (V) Effective Pixels NTSC: 768(H) X 494(V) / PAL: 752(H) X 582 (V) Scanning Frequency NTSC:15.734 KHz(H) X 59.94Hz(V) / PAL:15.625KHz(H) X 50.00Hz(V) Scanning System 2:1 Interlace Synchronization Internal OSD Built-in Dynamic Range 52Db (*128) Backlight BLC/ HSBLC / OFF Selectable Resolution 550TVL S / N (Y Signal) 52Db (AGC OFF, Weight On) Min. Illumination 0.00001 Lux F1.2 (Sens-Up *258) White Balance ATW / AWB/ INDOOR/ MANUAL / AWC Electronic Shutter Speed 1/60 ~ 1/100,000 Sens - Up Auto / Fixed/ Off (Selectable Limit *2~*258) Gain Control High / Middle / Low / Off Selectable 3 DNR On / Off (1 ~ 100 Level Selectable) D-WDR Indoor / Outdoor / Off Motion Detection On / Off (4 Zone Selectable) Privacy On / Off (8 Zone ) Mirror Off / Mirror / V- Flip/ Rotate Freeze On / Off Sharpness 0~ 31 (Level Selectable) D & N Selection Color / Auto/ Exit/ BW Selectable Digital Zoom On (*32) / Off Power DC12V (AC 24V , IPTIONAL) Operational Temp. -10 ~ +50 Deg C. RH 95% Max. Storage Temp. -20 ~ - Revues du produit
