Dahua IPC-HDPW4200F-WPT
Menu-

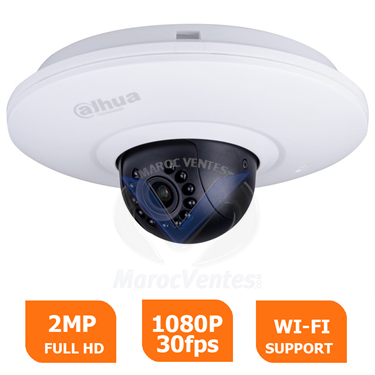

2 MP FULL HD WI-FI IR MINI PT DOME CAMERA
Obsolète (Fin de vie)Ce produit n'est plus proposé à la vente
Specification
• 1/2.8” 2Megapixel progressive scan CMOS• H.264 & MJPEG dual-stream encoding
• Max 25/30fps@1080P
• Day/Night(ICR), 3DNR, AWB,AGC,BLC
• Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
• Max 100°/s preset speed, ±180° Pan range, 90°Tilt range
• 3.6mm fixed lens
• Max. IR LEDs Length 15m
• Wi-Fi support
• Built-in Mic
• DC12VModel DH-IPC-HDPW4200F-WPT Camera Image Sensor 1/2.8” 2Megapixel progressive scan CMOS Effective Pixels 1920(H)x1080(V) Scanning System Progressive Electronic Shutter Speed Auto/Manual 1/3(4)~1/100000 Min. Illumination 0.01Lux/F1.2(color)
S/N Ratio More than 50db
Video Output N/A
Camera Features Max. IR LEDs Length 15m Day/Night Auto(ICR)/Color/B/W Backlight Compensation Off/BLC/HLC/DWDR White Balance Auto/Manual Gain Control Auto/Manual Noise Reduction 3D Privacy Masking Up to 4 areas Digital Zoom 3x Lens Focal Length 3.6mm Max Aperture F1.2 Focus Control Manual Angle of View H:88° Lens Type Fixed lens Mount Type Board-in Type PT Pan/ Tilt Range Pan: 0°~±180°; Tilt: 0°~90° Preset Speed 100°/s Preset 25 Video Compression H.264/H.264H/MJPEG Resolution 1080P(1920×1080) / 720P(1280×720) /D1(704×576/704×480) /
CIF(352×288/352×240)Frame Rate Main Stream 1080P/720P(1 ~ 25/30fps) Sub Stream D1/CIF(1 ~ 25/30fps) Bit Rate H.264: 32K ~ 8192Kbps Audio Compression G.711a/G.711u/PCM Interface Bulit-in Mic Network Ethernet RJ-45 (10/100Base-T) Wi-Fi Wi-Fi(IEEE802.11b/g/n)
50m(open field)Protocol IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour Compatibility ONVIF PSIA CGI Max. User Access 20 users Smart Phone
iPhone, iPad, Android, Windows Phone
Auxiliary Interface Memory Slot N/A RS485 N/A Alarm N/A PIR Sensor Range N/A General Power Supply DC12V Power Consumption <5W Working Environment -30℃~+50℃, Less than 95% RH Ingress Protection N/A Vandal Resistance N/A Dimensions Φ130mm×58.4mm Weight 0.25kg - Plus d'images (2)
